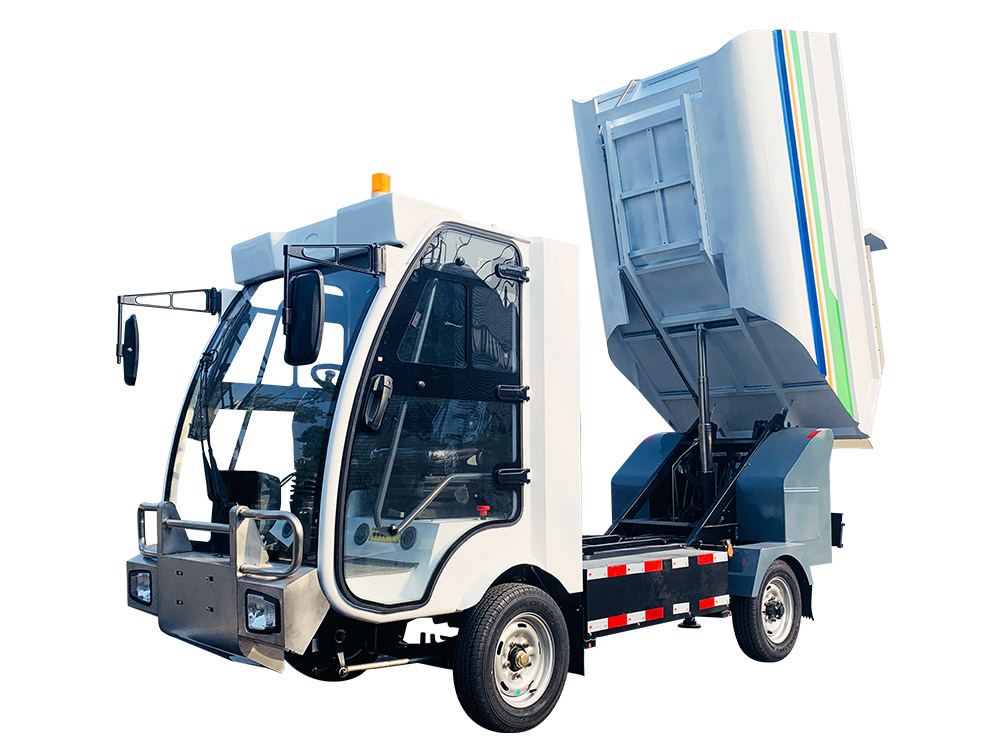

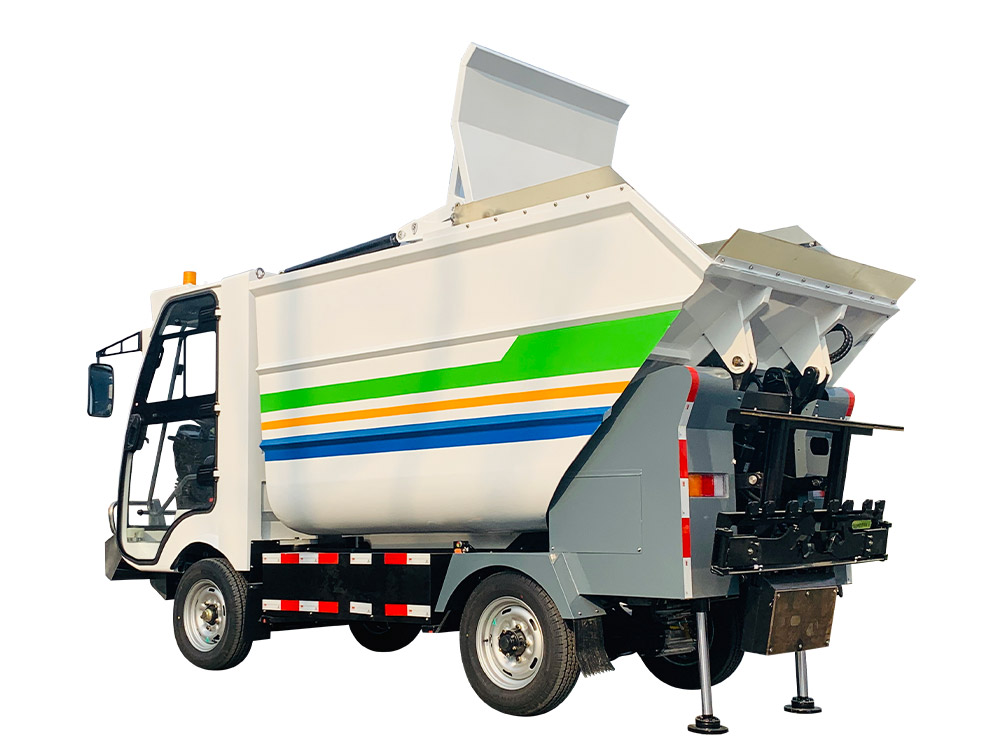

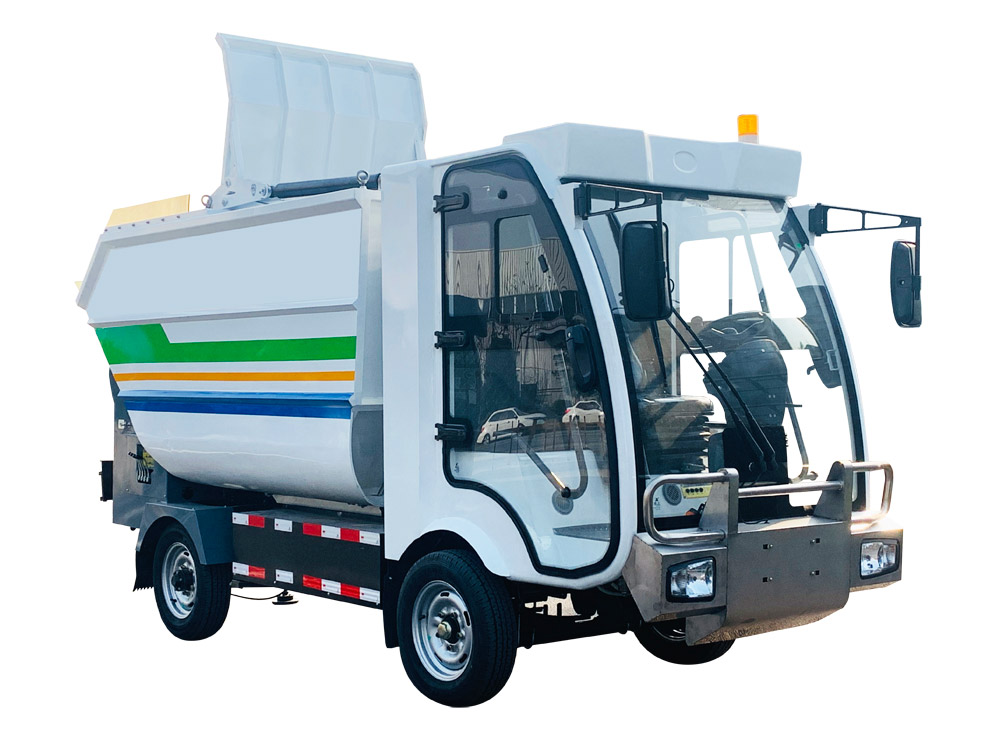

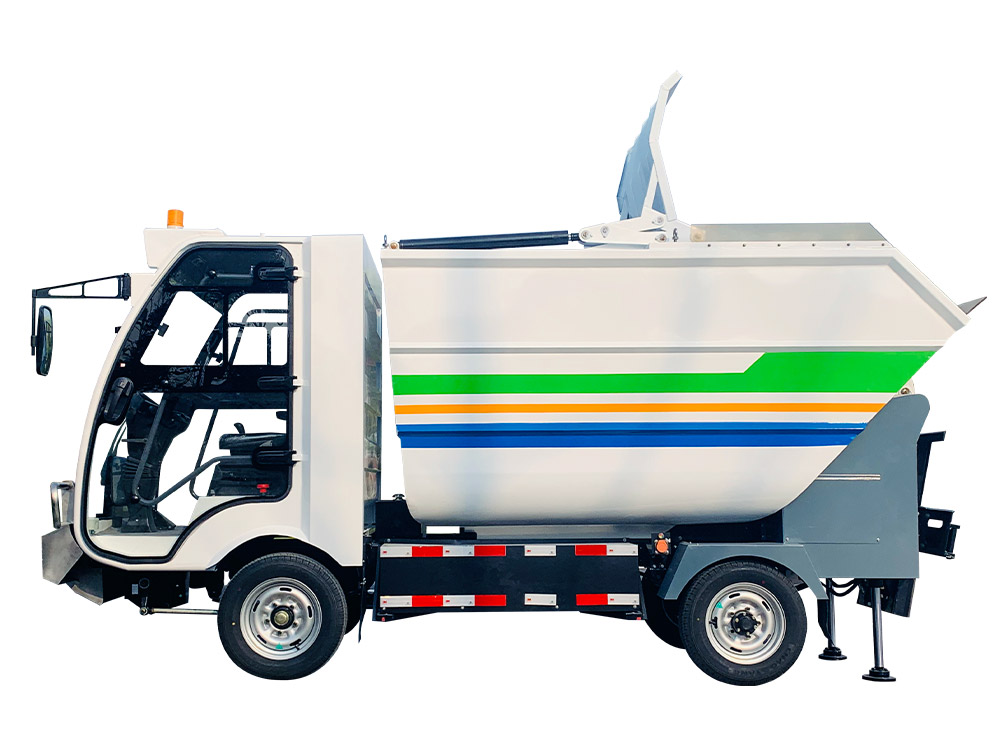

Rybao y48e pure electric garbage collector is mainly used for classified collection and transportation of barreled garbage in property, township, commercial area, tourist attraction, school and other places. The box is sealed well, and it is operated by pure electric operation, with low cost and zero discharge.

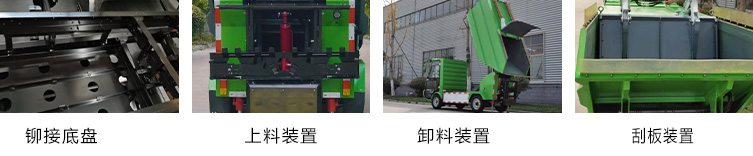

◆ Chassis: the overall riveted chassis of the vertical and horizontal beams of the frame is made of truck special steel plate, with high strength, strong bearing capacity, electrophoresis antirust treatment and corrosion resistance
◆ Body: fully enclosed cab, three full glass transparent, double door, front stainless steel bumper, high-quality high-strength metal body, good working sight, safe and beautiful
◆ High grade image, leather and soft interior
◆ Drive: 192 full floating electric differential rear axle drive, stepless speed change
◆ Battery: 12 * 6V / 200ah maintenance free lead acid batteries and 72V / 250ah lithium battery pack
◆ Hydraulic system: split type hydraulic station, 72V DC brushless motor hydraulic device, equipped with manual hydraulic pump, stable operation
◆ Feeding mode: backward bucket feeding (applicable to 120L / 240L / 360L / 660l / 800L / 1000L garbage cans)
◆ Scraper device: double rod compression scraper is set on the box, which can improve the loading capacity

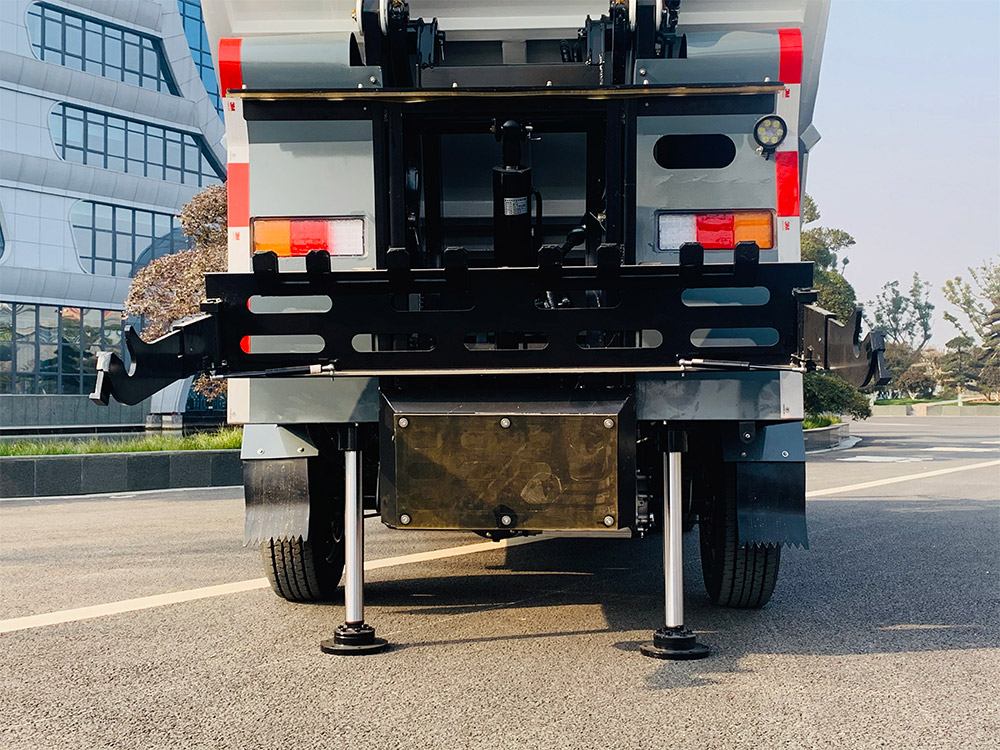

◆ Unloading mode: backward tipping unloading, maximum tipping angle ≤ 90 °, rear double hydraulic brace, safer unloading
◆ Cleaning system: equipped with electric cleaning device, it can clean the whole vehicle
◆ Seat: European standard E-MARK certified damping seat, with gravity sensing device, strong safety
◆ Brake system: high power front drum rear drum double circuit vacuum hydraulic brake system and independent parking brake
◆ Steering system: high power circulating ball integrated electric power steering system
◆ Tire: four wheel 175r14 radial brand vacuum tire, wear resistance, long service life
◆ Temperature control system: cold and warm air conditioning (limited to lithium battery version)
Parameters | Ruibao y48e pure electric garbage truck |
Voltage / rated power | 72V/17Kw |
Mileage | ≥100Km |
Box volume | 3.7m3 |
Volume of water tank | 55L |
Pump pressure | 5-7Mpa |
Rated load | 1600kg |
Maximum driving speed | 35Km/h |
braking distance | ≤5m |
Climbing ability | ≥30% |
Turning radius | ≤5m |
Dimensions | 4565*1560*2390mm |
Net weight | 2520kg(Lead acid)、2440kg(Lithium battery) |
Number of passengers allowed | 2人 |
