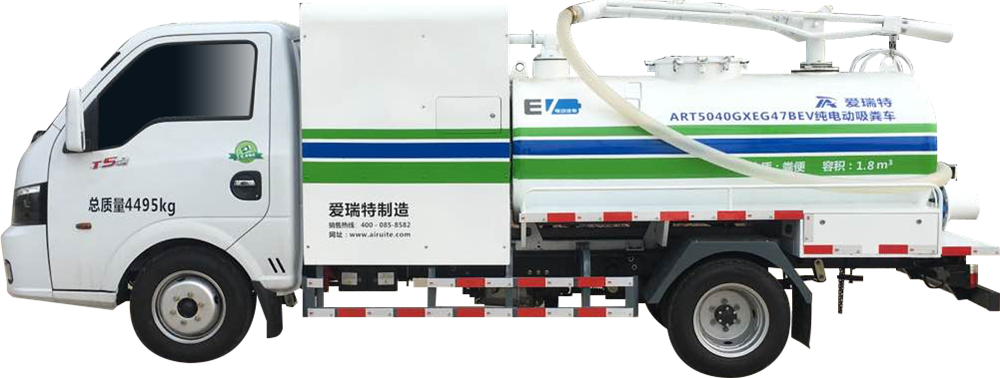

ART5040GXEG47BEV Pure electric septic truck is mainly used for sewage, sewage slurry, septic tank and liquid mixed with small suspended sundries in villages and towns, property communities, government institutions, scenic spots, factories and mining enterprises. It is pure electric operation, low cost and zero discharge.

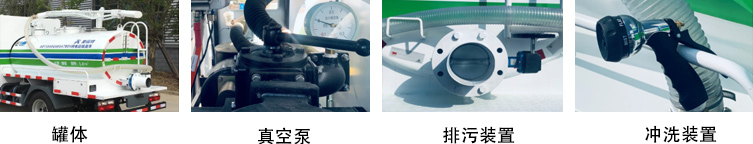

◆ tank body: high-quality high-strength steel plate, electrophoretic antirust treatment, corrosion resistance, elliptical head shape, solid and reliable, beautiful and atmospheric;
◆ suction system: brand vacuum pump and AC asynchronous motor are used to extract the air from the dung suction tank through coupling, so as to generate negative pressure in the tank, and then the dung and sewage in the dung tank are transported to the dung suction tank through high-pressure hose, which is safe, stable, fast and convenient;
◆ clean water system: the carriage is additionally equipped with a clean water system to facilitate spraying and cleaning of operating tools and dirt outside the carriage.
Entry name | Company | Parameter |
Chassis model / brand | / | EQ1040TACEV4/Dongfeng brand |
Total mass | kg | 4495 |
Curb weight | kg | 2990 |
Wheelbase | mm | 2850 |
Battery brand | / | Ningde times (lithium iron phosphate) |
Battery capacity | kWh | 66.84 |
Range | km | 230(Working condition method) |
Maximum speed | km/h | 90 |
Maximum climbing gradient | % | 20 |
Minimum turning radius | m | 6.2 |
Tank volume | m3 | 1.8 |
Maximum suction vacuum | Kpa | -90 |
Suction depth | m | ≥5 |
Clean water tank capacity | L | 70 |
Overall dimension of tank body(L × W × H) | mm | 1200×900×2350 |
Overall dimension(L × W × H) | mm | 5775×1660×2200 |
