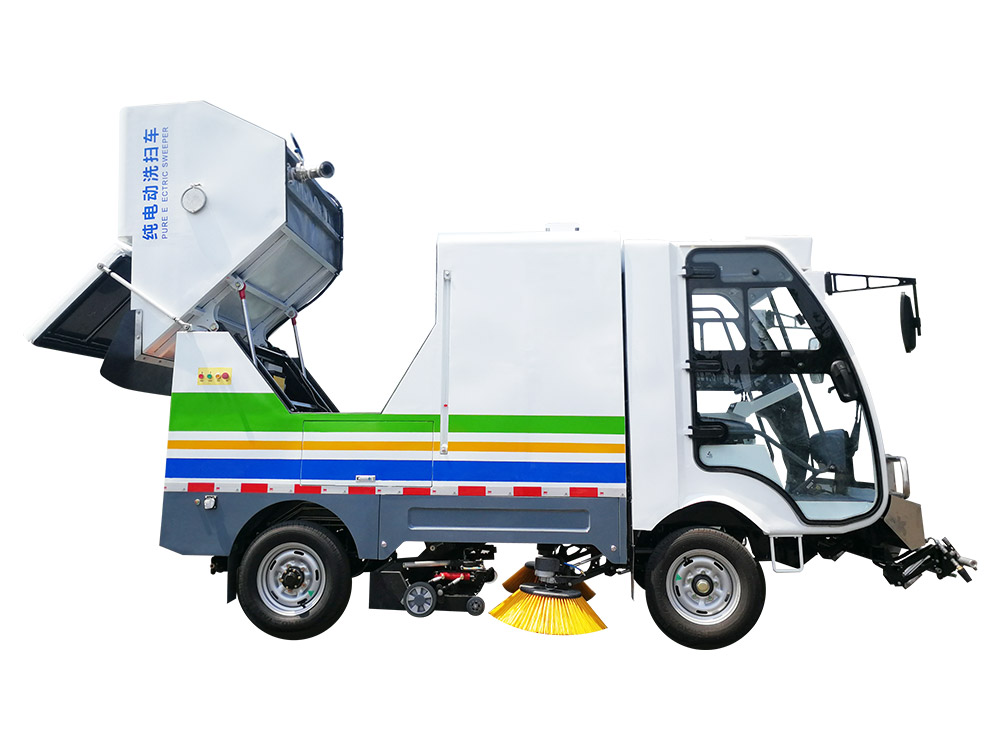

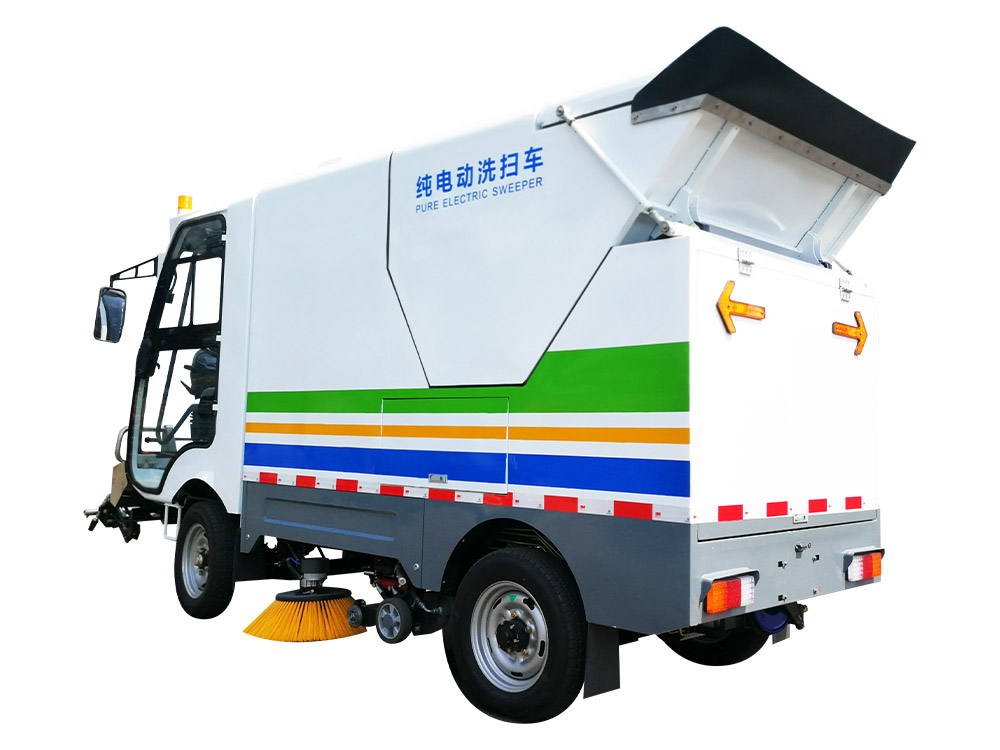

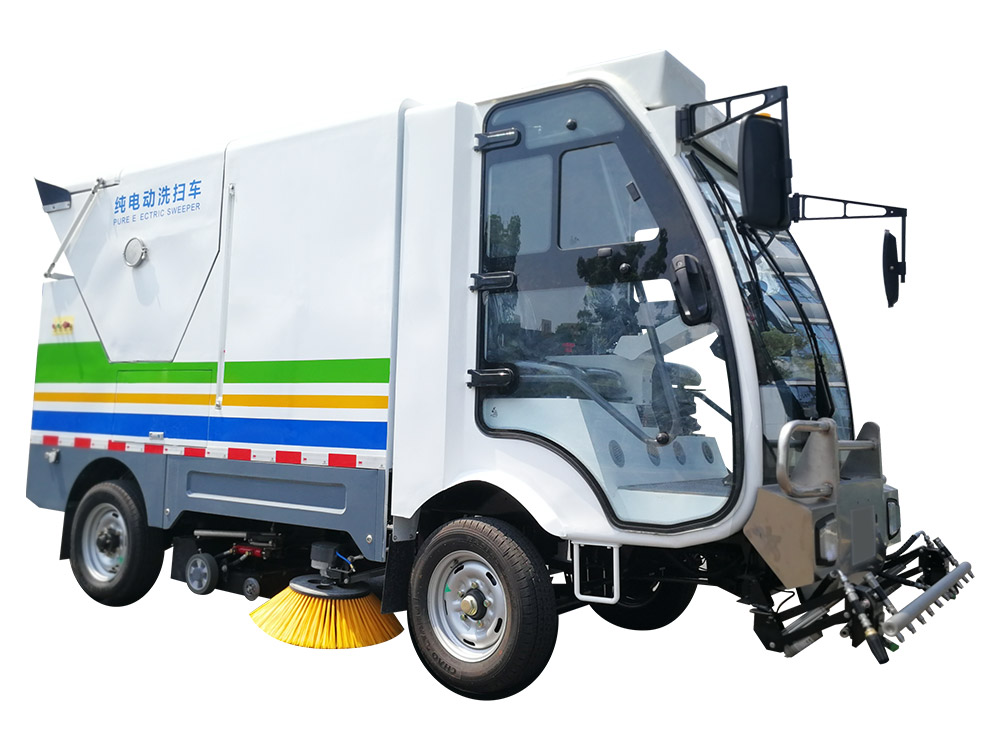

Ruiqing S26 pure electric road cleaning vehicle

< >

Field of application

Ruiqing S26 pure electric road cleaning vehicle is mainly used for general cleaning of main roads and auxiliary roads. It integrates the functions of cleaning, high-pressure washing and sewage recovery. It can quickly clean fallen leaves, stones, sand dust and white garbage. Garbage and sewage are collected synchronously and dumped at a high position.

Product highlights

◆ chassis: special steel plate for truck, integral riveted chassis design for automobile with longitudinal and transverse beams of frame, high strength and strong bearing capacity

◆ body: fully enclosed cab, fully transparent glass on three sides, front stainless steel bumper, high-quality and high-strength metal body, good line of sight, safe and beautiful

◆ battery: 72V / 450ah lithium battery pack

◆ flushing mechanism: Italian imported high-pressure water pump, front high-pressure flushing and multi angle flushing device, side flushing, hand-held spray gun and other functions

◆ cleaning system: pure suction type, which adopts the layout of "middle 650mm double cleaning disc + middle 1200mm wide suction nozzle + U-shaped spray bar", and is equipped with a detachable hand-held straw with a length of 4m, with high cleaning rate and fast operation speed

◆ waste dumping method: high-level turnover unloading, with a height greater than 1350mm

◆ driving type: equipped with LCD control screen, reversing image and cooling and heating air conditioner; The soft bag made of advanced simulated leather fabric is beautiful and heat-insulating

◆ seat: cushion seat, with gravity sensing device, strong safety

◆ steering system: electric circulating ball steering system

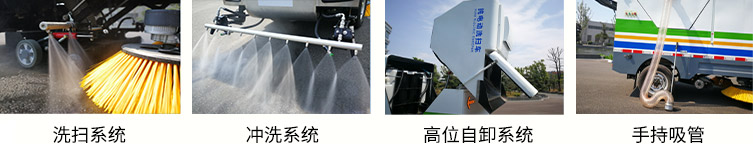

Product function

瑞清S26純電動道路洗掃車產(chǎn)品功能

technical parameter
ParametersRuiqing S26
Work efficiency≥20000㎡/h
Voltage / drive rating72V/7.5KW
Edge brush diameter650mm*2
Continuous working time≥5h
Range≥100km
Maximum travel speed35 km/h
Cleaning pressure8Mpa
Cleaning flow27L/min
Water tank capacity1100L
Dustbin capacity650(High level dump)L
Maximum inhaled particles>50mm(Garbage density is 2g/cm3)
Turning radius≤5m
Dimensions4200×1420×2400mm
Net weight2400kg
Number of passengers allowed in the cab2 people
